 feature



■ Compatible with energy harvesting elements with high voltage output, high output impedance, and ultra-low current output

 ・Lineup in 5V steps from 10V to 50V input voltage

 ・New lineup with 100V input voltage

 ・Step-down operation possible from an average input current of 0.5μA

■ Ultra-low power consumption (standby power 2μW or less)

■ High efficiency of 60% or more at average input current of 1μA

■ Selectable output voltage 3.3V or 5V

■ Input supports both DC and AC



 Usage



■ Piezoelectric power generation element

■ Electret power generation element

■ Photovoltaic elements (solar cells)

■ Others high voltage output, high output impedance, energy harvesting element with ultra-low  current output

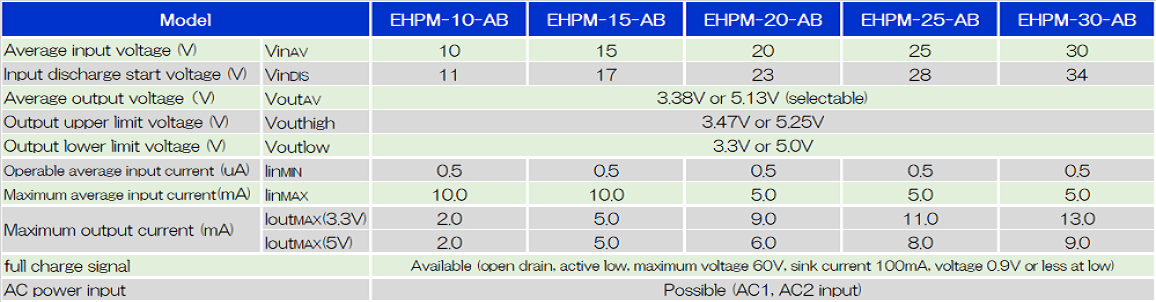

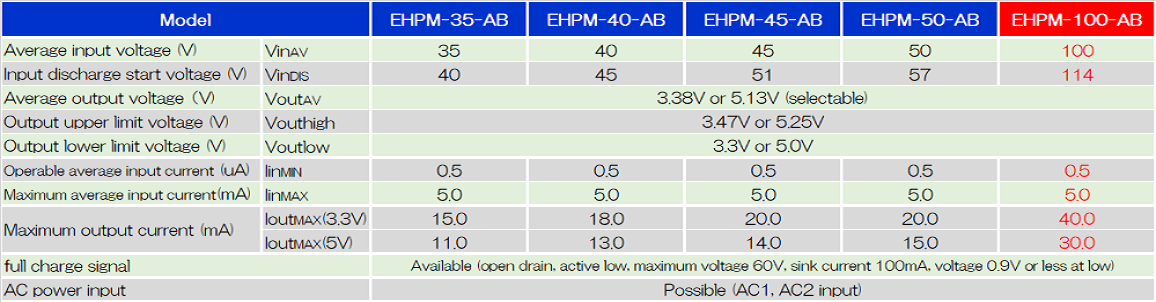

 Specification

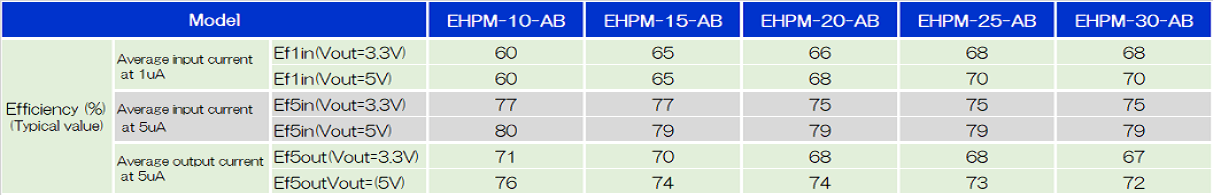

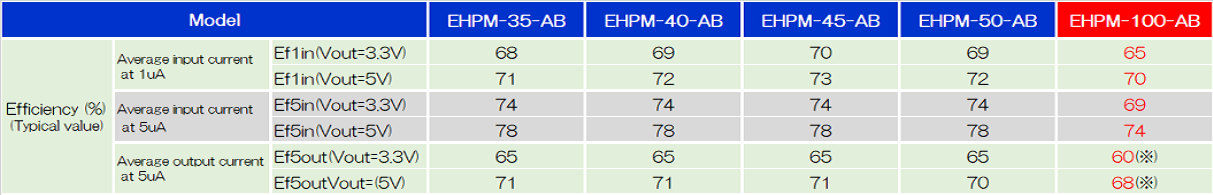

 Efficiency





                                      (※)Measured at 10μA output current

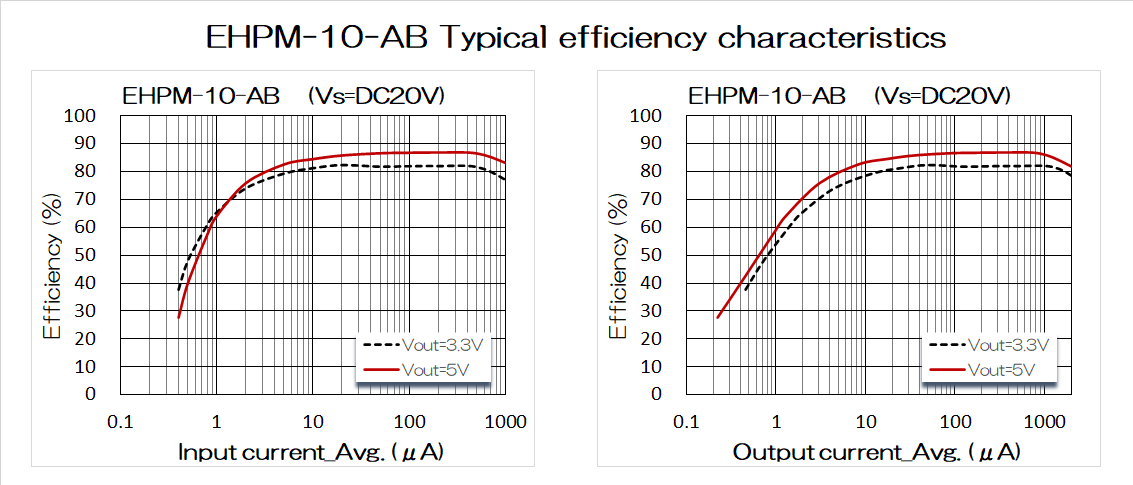

・EHPM-10-AB Efficiency characteristic graph

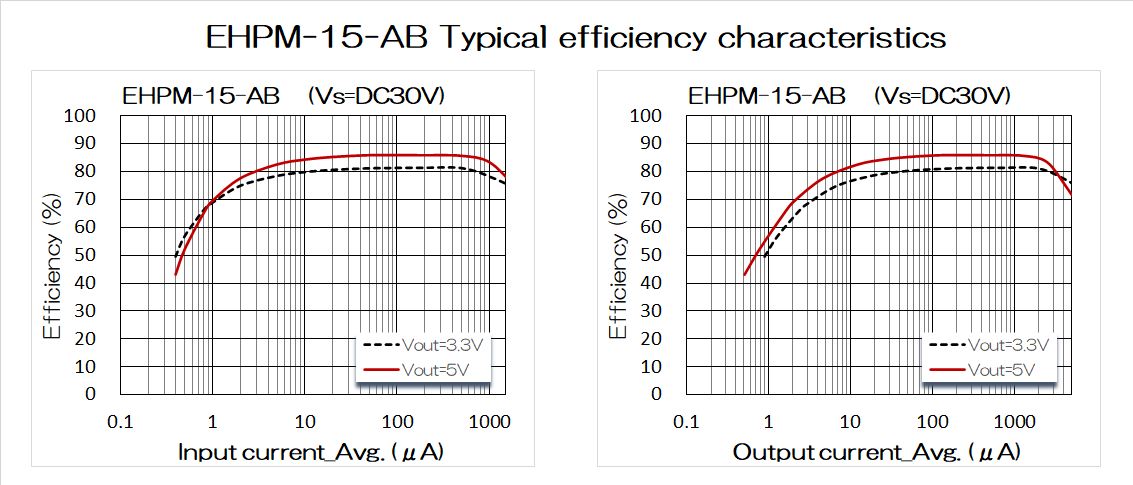

・EHPM-15-AB Efficiency characteristic graph

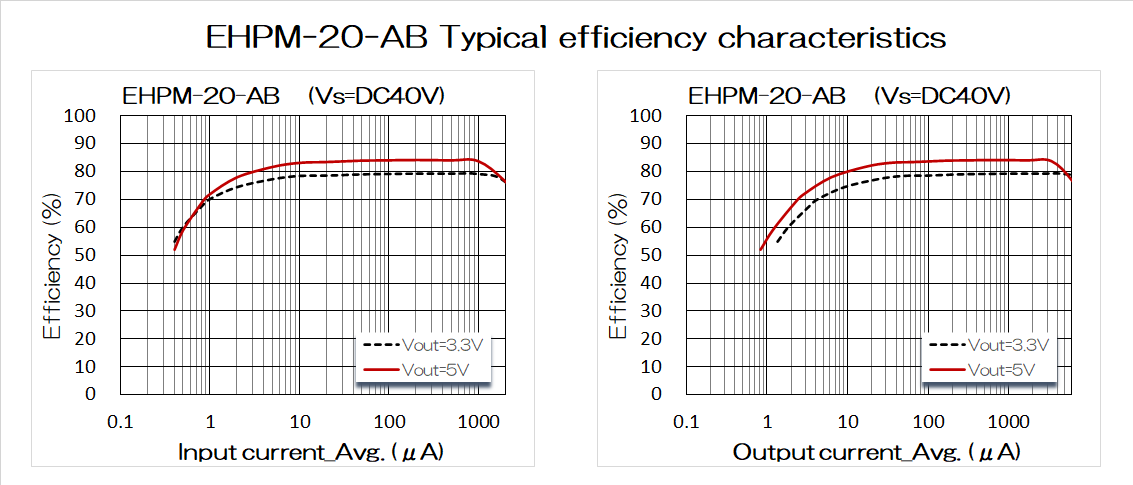

・EHPM-20-AB Efficiency characteristic graph

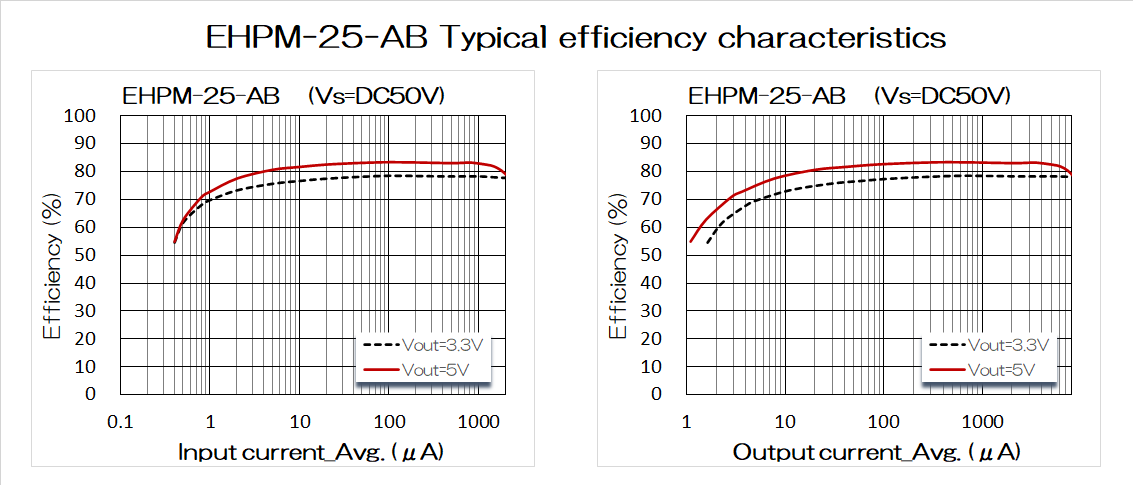

・EHPM-25-AB Efficiency characteristic graph

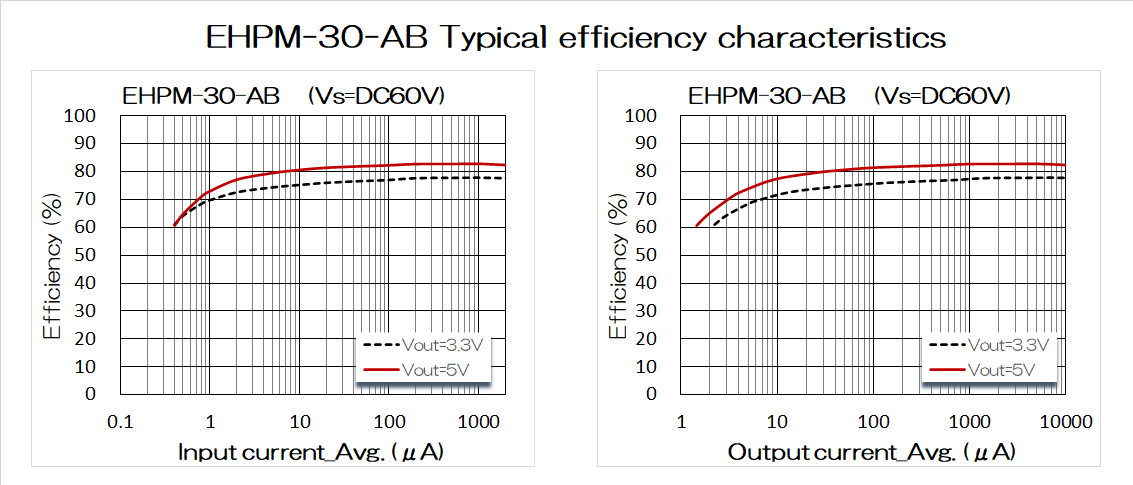

・EHPM-30-AB Efficiency characteristic graph

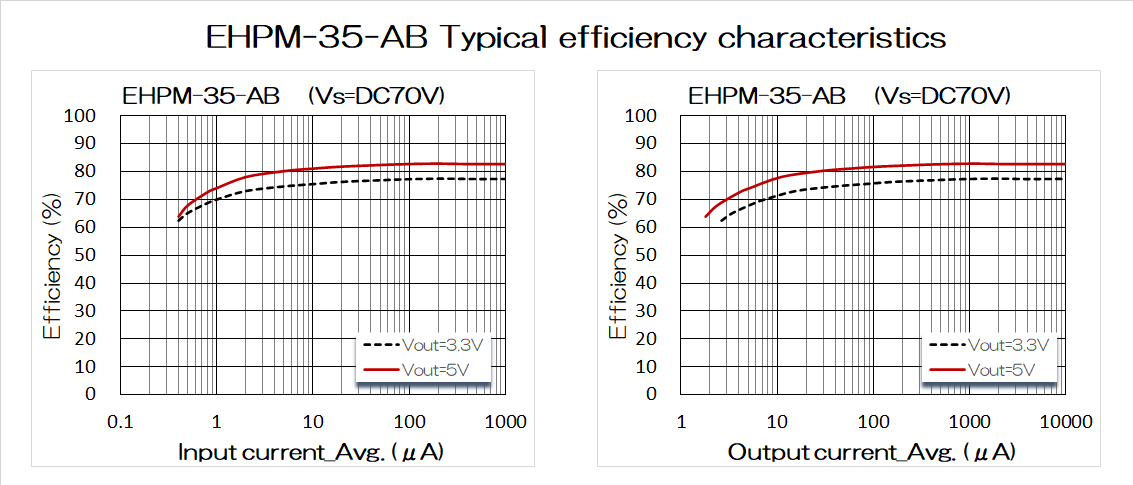

・EHPM-35-AB Efficiency characteristic graph

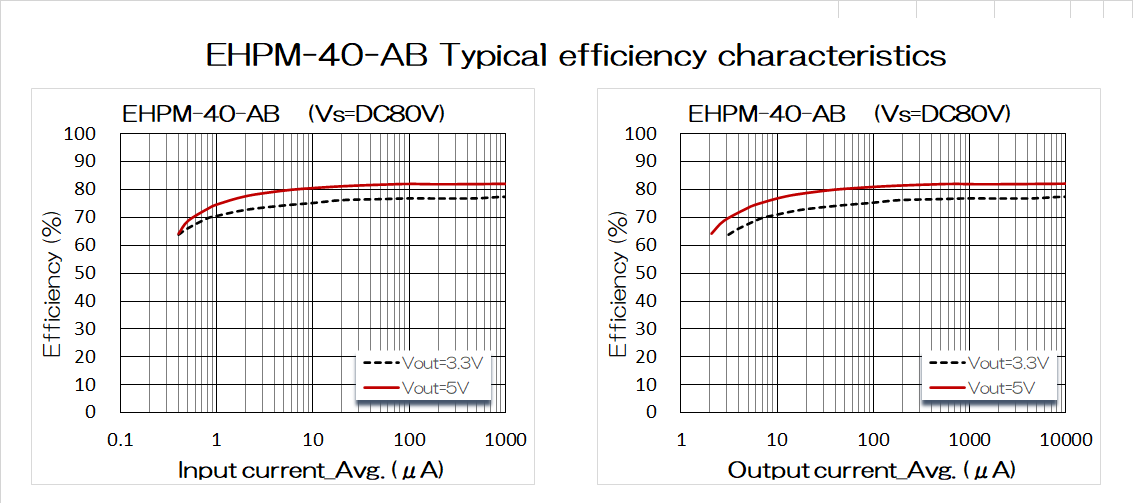

・EHPM-40-AB Efficiency characteristic graph

・EHPM-45-AB Efficiency characteristic graph

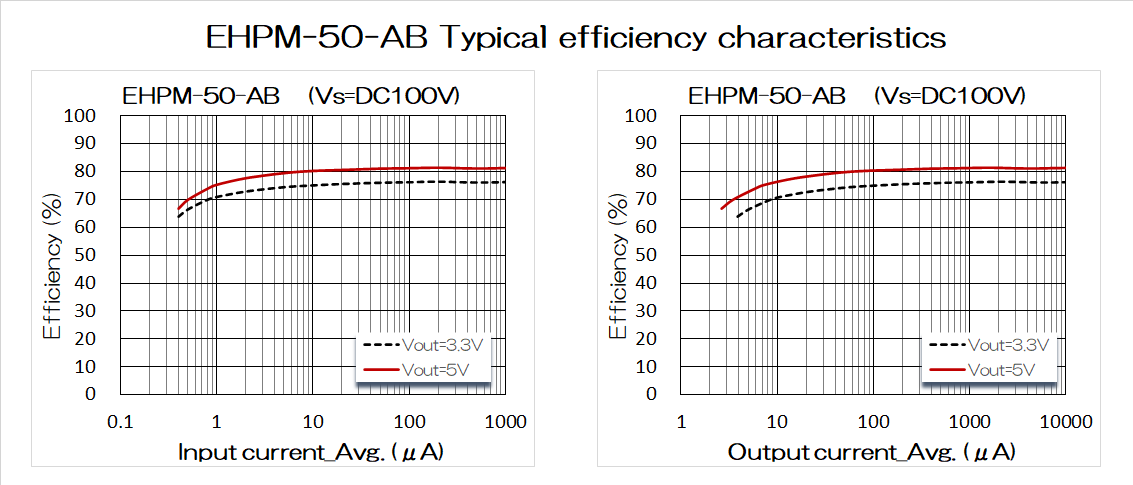

・EHPM-50-AB Efficiency characteristic graph

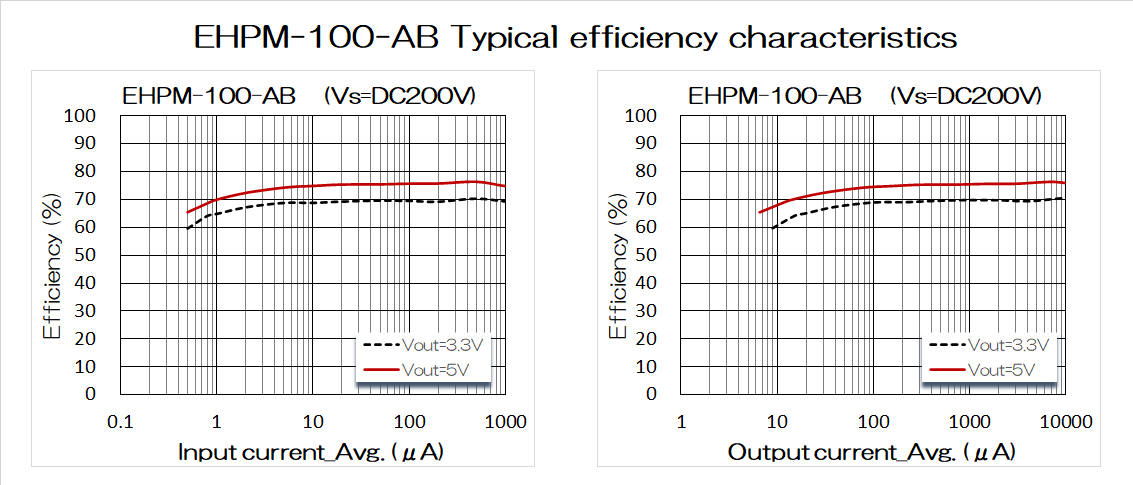

・EHPM-100-AB Efficiency characteristic graph

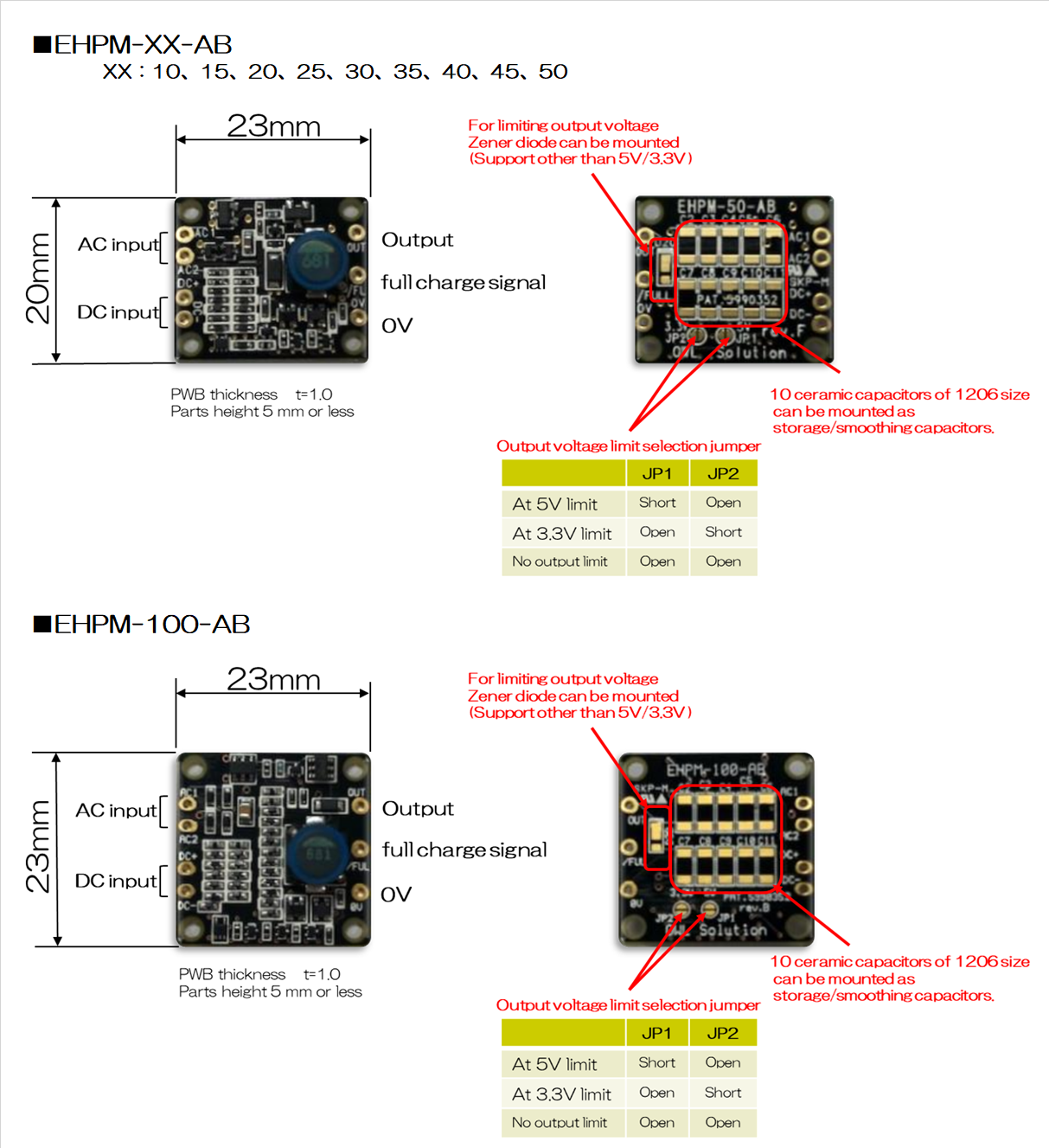

 Appearance

 Precautions for use



This module does not include a power storage/smoothing capacitor as standard.

When using this module, connect a capacitor of 100μF or more

for power storage/smoothing between the output terminal and the 0V terminal.



Document download



・EHPM series product overview

・EHPM series data sheet



 Contact Us



Please contact the following for technical inquiries, document requests, and sample purchase inquiries regarding the energy harvesting power module "EHPM series".
